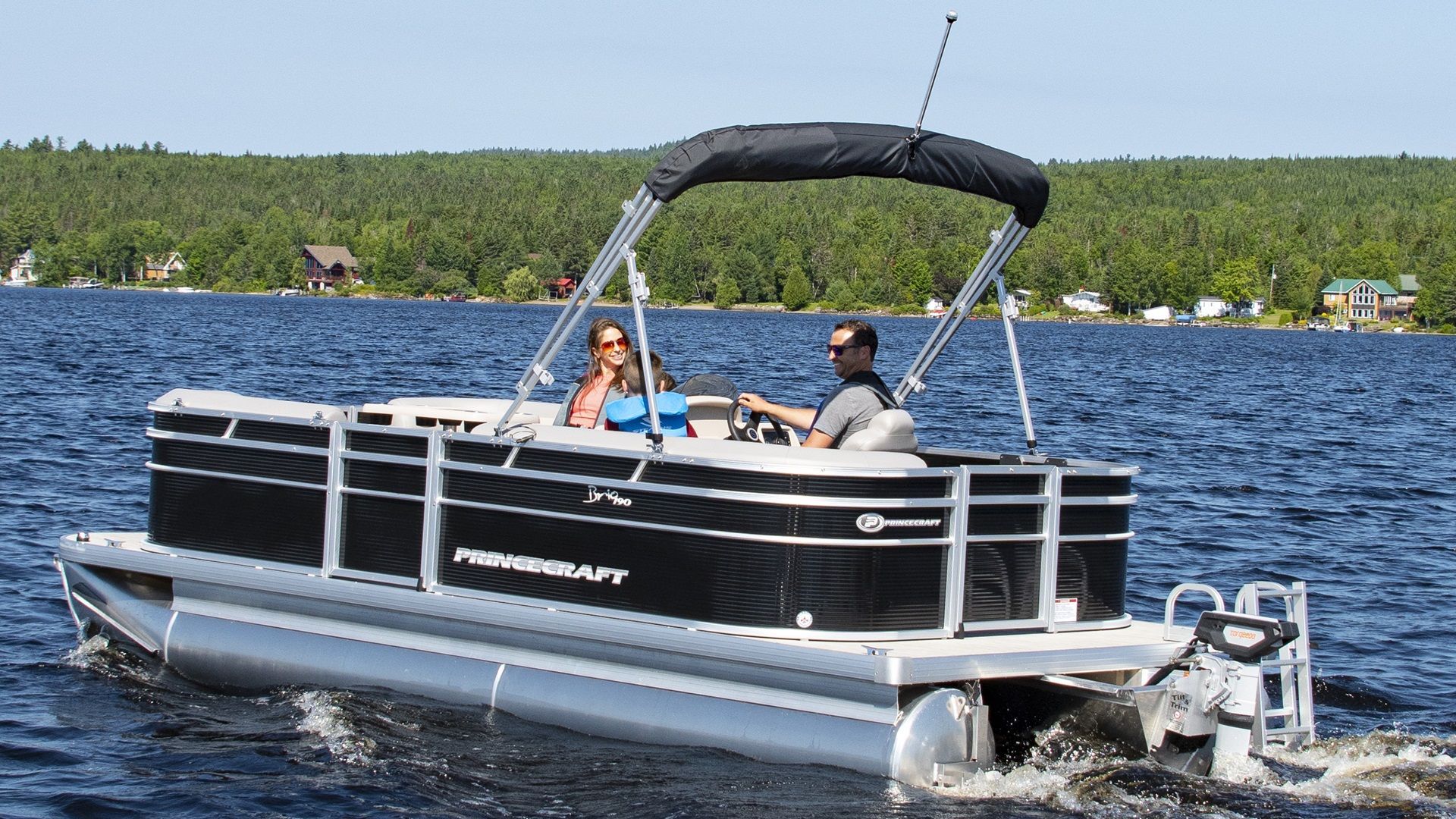

PRINCE CRAFT BRIO 190

The eco friendly pontoon

6 MPH

SPEED

8 People

CAPACITY

5.6 m (18’-4”)

OVERALL LENGTH

ELEGANT CRAFTSMANSHIP POWERED BY ELECTRIC TECHNOLOGY

You like to spend your days on the water, but you are conscious of the environment or you navigate on lakes that do not allow gas powered engines? The Brio 190 pontoon is the one for you. This 19'-7" pontoon from the Brio series is powered by a Torqeedo electric engine 3.0 RL, 6.0 RL or 12.0 RL and can accommodate up to 6 people (8 in the USA). With more suitable engine options, ultra-light lithium batteries, a fast-charging system and a modern upholstery, you can make the most of electric propulsion and still have a perfect day on the water!

CONSTRUCTION

5052-H36 marine grade aluminum alloy
2 1/2" heavy-duty extruded Z-aluminum cross channels
NMMA & Transport Canada certified
1 1/4" anodized aluminum rails
Sealed pontoon bulkheads with top mounted air plug (23")
V-shaped aluminum engine pod
Select dark grey vinyl floor covering (Teak Supreme Solid Dark)
Extruded aluminum full-length pontoon keels
Extruded aluminum full-length pontoon skirting
Stern molded corners
Walk-thru rear gate with lift and lock hinges
Walk-thru bow gate with lift and lock hinges
Port side gate with lift and lock hinges (24")
Stern swim platform
Stainless steel bow eye
4- 6" chromed deck cleats

HELM AND INSTRUMENTATION

Rotomolded helm console
Helm storage with net
Molded dash panel with black inserts and lighted switches
Push on/off console courtesy light
Remote throttle with integrated display (indicating battery voltage, battery charge, speed, remaining range at current speed, and input power consumption)
Voltmeter for accessory battery
Onboard battery chargers and boxes
Navigation lights
Transducer mounting bracket
Battery box

FURNITURE AND TOPS

Plush and heavy weight upholstery
Roto-Cast furniture bases and backs
Folding swivel driver seat
1 stern storage module
1 chaise lounge
Storage under all lounges
Black bimini top
Bimini top latches and traveling struts
Factory installed snap fasteners for canvas camper enclosures & mooring/trailer top options
Stern boarding ladder
Cup holders

SPECIFICATIONS

SPEED

6 mph (9.66 Km/H)

CAPACITY

8 passengers

EMPTY WEIGHT

674 kg (1485 lb)

HULL MATERIAL

Aluminum

OVERALL LENGTH

5.6 m (18’-4”)

OVERALL WIDTH

2.5 m (8'-1")

DRAFT

0.61 m (24”)

ENGINE POWER

6 hp

CHARGER VOLTAGE

110 V – 220 V

ELECTRIC MOTORS

Epropulsion – Speed of 6 mph

Motor	Battery	Range
Avator 20e	2x 48v Lithium 2.3kWh	1.5-6.5H
Avator 20e	4x 48v Lithium 2.3kWh	3-14H
Cruise 3.0RL	1 x 24v Torqueedo	1.75-6.5H
Cruise 3.0RL	2 x 24v Torqueedo	3H-13.5H
